Electronic Weighing Bagging Scales

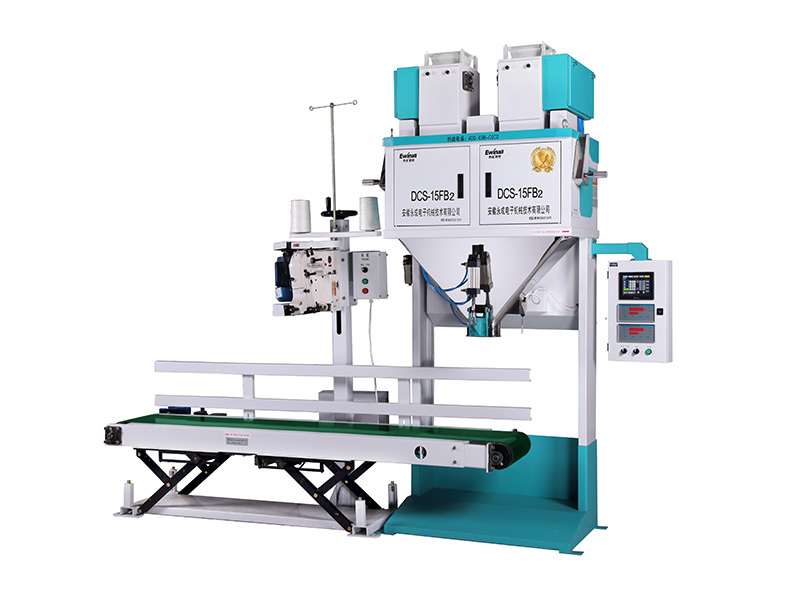

DCS-15FB2 electronic weighing and bagging scale
Model DCS-15FB2
Automatic weighing and packaging of free-flowing materials such as rice, sugar, animal feed and plastic pellets.
Machine Data
Technical Specifications
Product Overview
Product Description
1. Application
Automatic weighing and packaging of free-flowing materials such as rice, sugar, animal feed and plastic pellets.
2. Technical Specifications
|
Model specifications |
DCS-15FB2 |
DCS-50FB1 |
|
Weighing range |
（0.5-15）kg |
(5-25)kg |
|
Packaging speed |
(600-1200) bags/hour |
(600-1000) bags/hour |
|
Division value |
2g |
|
|
Weighing error |
±0.1%F.S |
|
|
Power supply / power consumption |
4N-AC380V 50Hz ； 1.1 KW |
|
|
Compressed-air supply / consumption |
0.4-0.5MPa compressed air 16.7L/min |
|
|
Operating temperature |
(0~40)℃ |
|
|
Operating humidity |
Maximum 90% RH at 40 °C; higher humidity is permitted at lower temperatures. |
|
|
Overall dimensions (mm) |
3130 × 860 × 2335 |
3120 × 960 × 2692 |
2. Key Features
1. The three-sensor structure and independent single-cylinder feeding mechanism provide stable operation.
2. A calibrated adjustment handle adapts the feed opening to different moisture levels and grain shapes to maintain weighing accuracy.
3. A rotating column supports multiple packaging formats and switches between bag sewing and heat sealing.
Project Consultation
Is this machine right for your product?
Tell us your material, bag type, target weight and required capacity. Our team will recommend a suitable configuration.
