Electronic Weighing Bagging Scales

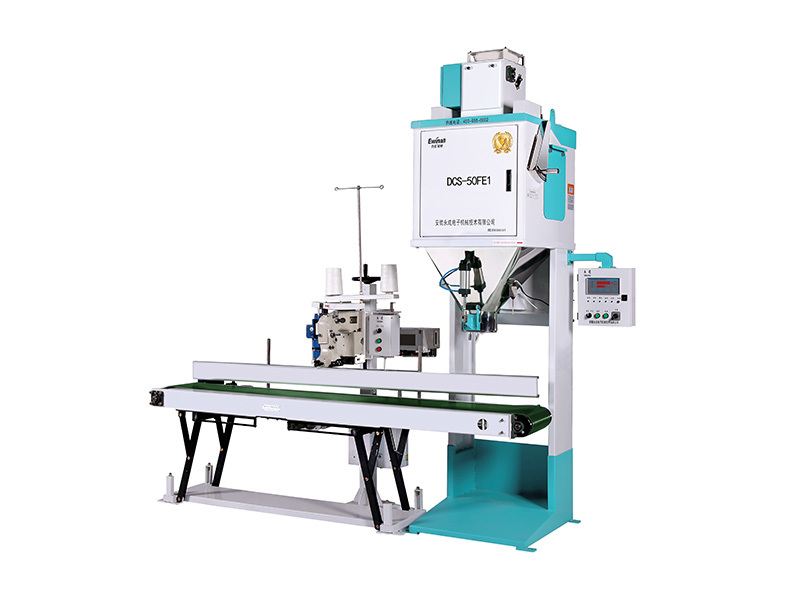

DCS-50FE electronic weighing and bagging scale
Model DCS-50FE
Automatic weighing and packaging of rice, seeds, animal feed and other granular materials.
Machine Data
Technical Specifications
Product Overview
Product Description
1. Application
Automatic weighing and packaging of rice, seeds, animal feed and other granular materials.
2. Technical Specifications
|
Model specifications |
DCS-50FE1 |
DCS-50FE1-Z |
|
Weighing range |
（10-50）kg |
|
|
Weighing speed |
(200-480) bags/hour |
|
|
Scale value (g) |
5 |
|
|
Weighing error |
±0.1%F.S |
|
|
Power supply / power consumption |
4N-AC380V 50Hz 1.1KW |
|
|
Compressed-air supply / consumption |
0.4-0.5MPa 1m3/h |
|
|
Operating temperature |
(0~40)℃ |
|
|
Operating humidity |
Maximum 90% RH at 40 °C; higher humidity is permitted at lower temperatures. |
|
|
Dimensions (mm) length * width * height |
2847x1026x2731 |
2970 × 1016 × 2931 |
3. Key Features
1. Weighing instrument PLC dual-core control technology, using three-sensor structure.
2. Digital intelligent automatic lifting conveyor, the conveyor quickly switches to the appropriate position according to different packages, and can remember the lifting height of different varieties.
3. A rotating column supports multiple packaging formats and switches between bag sewing and heat sealing for easier operation.
