Flour Weighing Bagging Scales
DCS-50FT-1

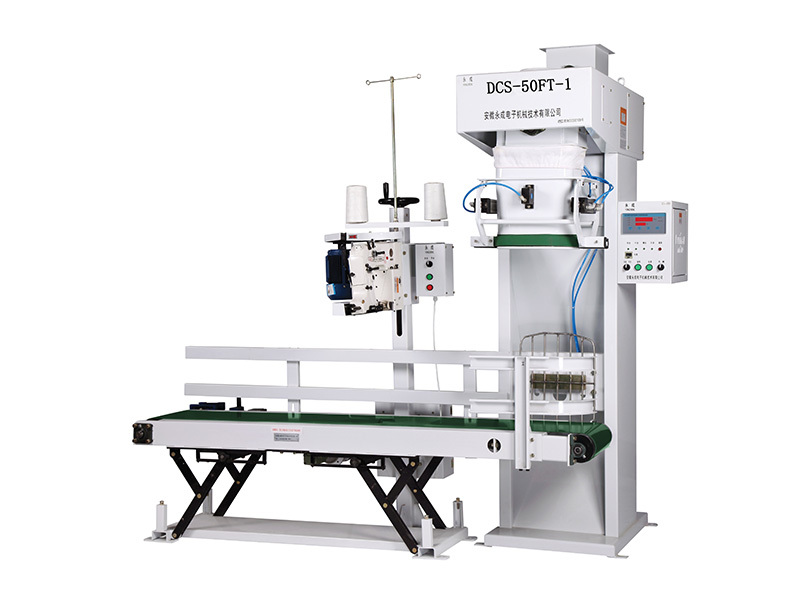

Model DCS-50FT-1
Weighing and packaging of powdered materials such as flour, animal feed, food additives and chemicals.
Machine Data
Technical Specifications
Product Overview
Product Description
1. Application
Weighing and packaging of powdered materials such as flour, animal feed, food additives and chemicals.
2. Technical Specifications
|
Model specifications |
DCS50FT-1 |
||
|
Conveyor type |
Powder scale hand-controlled lifting conveyor |
||
|
Weighing range (kg) |
40-50 |
||
|
Index value (g) |
10 |
||
|
Accuracy class |
±0.2%F.S |
||
|
Weighing speed (bag/hour) |
100~180 |
||
|
Power supply / power consumption |
4N-AC380V50Hz；3.7KW |
||
|
Compressed-air supply / consumption |
0.4-0.5Mpa compressed air 1m3/h |
||
|
Operating temperature |
(0~40)℃ |
||
|
Operating humidity |
Maximum 90% RH at 40 °C; higher humidity is permitted at lower temperatures. |
||
|
Overall dimensions (mm) |
2808 × 1342 × 3076 |
||
2. Key Features
1. Specially designed three-sensor support.
2. The machine provides automatic drop correction. out-of-tolerance alarm.
3. Operation is straightforward. The operator only needs to cover the bag and touch the bag switch (or step on the foot switch) by hand, while the actions such as feeding, filling and unloading the bag are all completed automatically.
