Electronic Weighing Bagging Scales

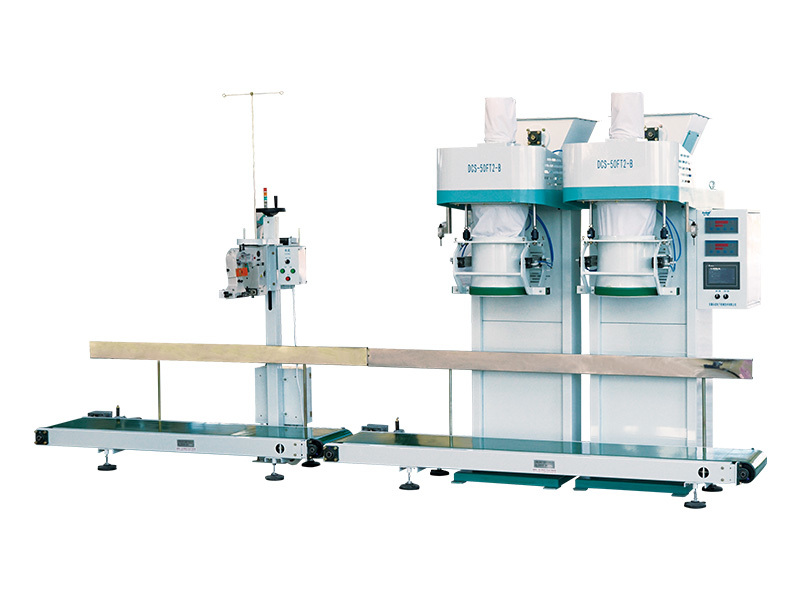

DCS-50FT2-B twin-body powder weighing and bagging scale
Model DCS-50FT2-B
Weighing and packaging of powdered materials such as flour, animal feed, food additives and chemicals.
Machine Data
Technical Specifications
Product Overview
Product Description
1. Application
Weighing and packaging of powdered materials such as flour, animal feed, food additives and chemicals.
2. Technical Specifications
|
Model specifications |
DCS-50FT2-B |
DCS-50FT2 |
|
Weighing range |
(40-50)kg |
|
|
Division value |
10g |
|
|
Weighing error |
±0.2%F.S |
|
|
Weighing speed (bag/hour) |
200-280 (bran powder) |
100-180 (bran powder) |
|
Power supply / power consumption |
4N-AC380V50Hz；5KW |
|
|
Compressed-air supply / consumption |
0.4-0.5Mpa compressed air 2m3/h |
|
|
Operating temperature |
(0~40)℃ |
|
|
Operating humidity |
Maximum 90% RH at 40 °C; higher humidity is permitted at lower temperatures. |
|
|
Overall dimensions (mm) |
4730 × 1670 ×(2232 1368) |
2620 × 1670 ×(2232 1283) |
3. Key Features
1. Specially designed three-sensor support.
2. The machine provides automatic drop correction and out-of-tolerance alarms. Stores production reports and supports data communication.
3. Operation is straightforward. The operator only needs to cover the bag and touch the bag switch (or step on the foot switch) by hand, while the actions such as feeding, filling and unloading the bag are all completed automatically.
4. Double-station operation is combined with upper and lower pier bags to improve packing speed and comfort of sewing bags.
