Electronic Weighing Bagging Scales

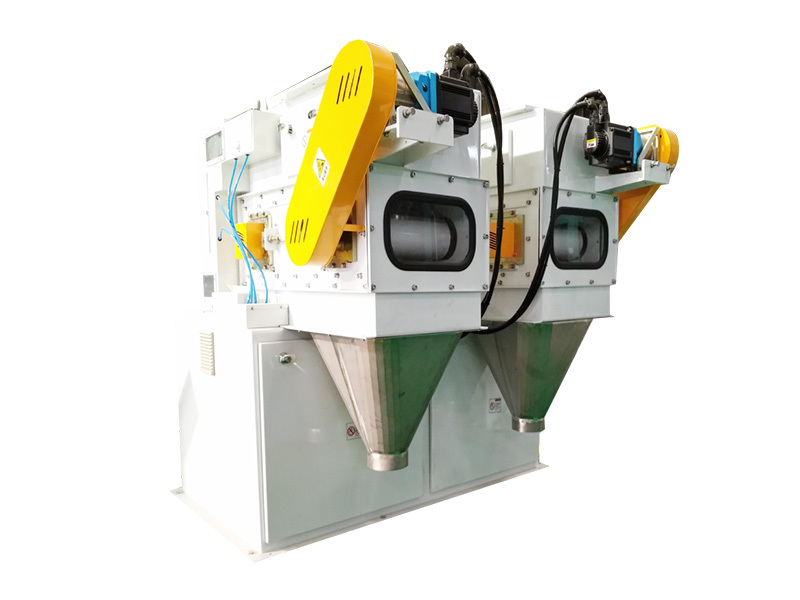

DCS-60BK-B servo belt scale
Model DCS-60BK-B
Weighing and packaging of free-flowing materials such as soybean meal, poultry feed, bran and expanded soybean powder.
Machine Data
Technical Specifications
Product Overview
Product Description
1. Application
Weighing and packaging of free-flowing materials such as soybean meal, poultry feed, bran and expanded soybean powder.
2. Technical Specifications
|
Model |
DCS-60BK-B |
|
Weighing range |
（40-70）kg |
|
Division value |
10g |
|
Weighing error |
±0.2%F.S |
|
Packaging capacity |
(600-660) bags/hour |
|
Power supply / power consumption |
4N-AC380V±5% 50Hz；4KW |
|
Compressed-air supply / consumption |
0.4~0.5Mpa, compressed air 26L/min |
|
Operating temperature |
(0~40)℃ |
|
Operating humidity |
Maximum 90% RH at 40 °C; higher humidity is permitted at lower temperatures. |
|
Length x Width x Height (mm) |
3076×1044.5×2680.5 |
3. main features
1. Stable three-sensor weighing structure, servo-controlled feeding.
2, can communicate with the upper computer
3, the size of the load-bearing part, can be equipped with automatic packaging machine, semi-automatic packing scale.
